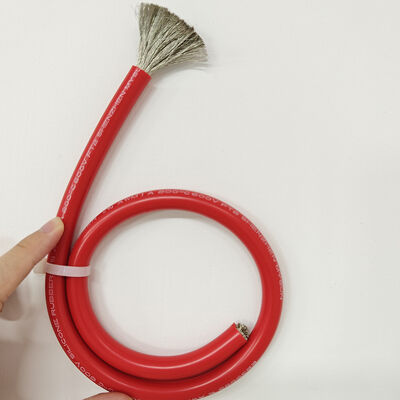

200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor

  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
  • 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer UL3512
Min. bestelaantal 2000
Productdetails
Materiaal geleider Koper Diameteropties 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Isolatie materiaal Siliconen Nominale spanning 600/1000/1500V
nominale temperatuur -80ºC ~ +200ºC Dirigenttype Gestrand
Type isolatie Siliconenrubber Enkele draaddiameter 0,08 mm
Nominale dikte 0,78 mm, 1,15 mm, 1,52 mm, 2,03 mm Geleidersconstructie Gevlochten vertinde draad
Diameterbereik 0,48 mm tot 16,3 mm Draaddikte 26 AWG tot 2/0 AWG
STRAND TELLEN 25 tot 13422 Isolatiedikte 0,78 mm tot 2,03 mm
Algehele diameter 2,10 mm tot 16,3 mm
Markeren

200C Rated Temperature Battery Cable

,

Ultra Soft Silicone Wire

,

Tinned Copper Conductor EV Cable
Laat een bericht achter
Productomschrijving
2AWG 4AWG 6AWG 8AWG 200°C Ultra Soft EV Silicone Battery Cable
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 0 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 1
UL3512 - 0.08 Super Soft Silicone Wire Specifications
Conductor Insulation
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
2625/0.080.480.782.10±0.1
2441/0.080.600.782.20±0.1
2265/0.080.780.782.50±0.1
20104/0.080.950.782.55±0.1
18164/0.081.170.782.80±0.1
16261/0.081.470.783.10±0.1
14415/0.082.100.783.70±0.1
12660/0.082.700.784.30±0.1
101050/0.083.40±0.301.155.50±0.2
91320/0.083.80±0.31.156.10±0.3
81650/0.084.00±0.301.156.30±0.3
72100/0.084.80±0.31.527.90±0.3
62648/0.085.30±0.301.528.30±0.4
53338/0.086.10±0.51.529.20±0.4
44210/0.086.80±0.51.529.90±0.4
35309/0.087.80±0.51.5210.9±0.5
26692/0.088.70±0.51.5211.8±0.5
18842/0.0810.0±0.62.0314.0±0.6
1/010647/0.0811.0±0.702.0315.0±0.6
2/013422/0.0812.3±0.82.0316.3±0.7
Contact Us to Get the Most Cost-effective Quote
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 2 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 3
Our Products
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 4
Application
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 5
Company Profile
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 6 200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 7
Our Overseas Clients
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 8
Exhibition
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 9
Certifications
200C Rated Temperature Ultra Soft EV Silicone Battery Cable with Tinned Copper Conductor 10
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
