UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor

  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
  • UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer UL11627
Min. bestelaantal 500
Productdetails
Materiaal geleider Koper Isolatie materiaal PVC
Nominale spanning 2000v Maatbereik 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG, 3AWG, 5AWG
Werktemperatuur 105C Geleidingsdiameter 0,38 mm tot 3,35 mm
Isolatiedikte 0,78 mm Bedekkend dikte 0.13-1.0mm
Max geleiderweerstand 239Ω/KM tot 2,813Ω/KM Eenheid lengte 305M tot 1220M
Jasmateriaal PVC Geleidersconstructie 7/0,127 tot 105/0,254
Nominale diameter 1,94 mm tot 4,91 mm Kabeltype hoge spanning
Ul standaard UL11627
Markeren

2000V Rated Voltage Battery Cable

,

105C Working Temperature High Voltage Cable

,

Copper Conductor New Energy Cable
Laat een bericht achter
Productomschrijving

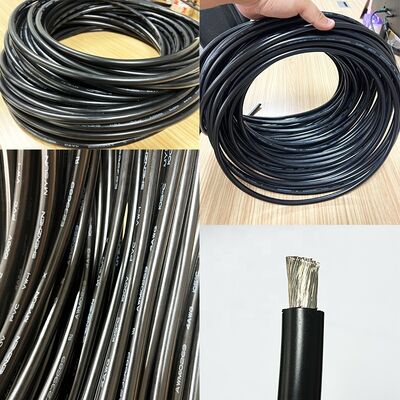

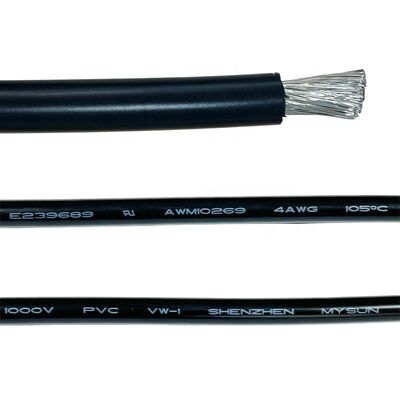

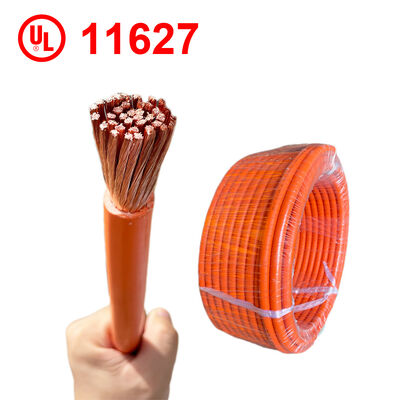

UL11627 New Energy Cable 2000V 105°C High Voltage PVC Wire
Supplies Fortune 500, Top New Energy Cable Supplier In China
Product Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Thickness (mm) Max. Cond Resistance (Ω/KM) Unit Length (M/Ft)
287/0.1270.380.781.940.13-1.02391220/4000
267/0.160.500.782.060.13-1.0150610/2000
247/0.200.600.782.160.13-1.094.2610/2000
2217/0.160.760.782.320.13-1.059.4610/2000
2021/0.180.940.782.500.13-1.036.7305/1000
1816/0.2541.190.782.750.13-1.023.2610/2000
1626/0.2541.500.783.060.13-1.014.6610/2000
1441/0.2541.890.783.450.13-1.08.96610/2000
1265/0.2542.370.783.930.13-1.05.64610/2000
10105/0.2543.020.784.580.13-1.03.55610/2000
937/0.4753.350.784.910.13-1.02.813610/2000
Contact Us to Get the Most Cost-effective Quote
Our Products
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 0 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 1
Application
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 2 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 3

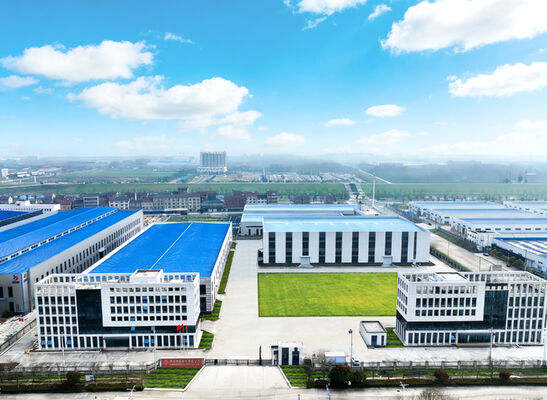

Company Profile
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 4 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 5 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 6 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 7
Our Overseas Clients
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 8 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 9
Exhibition
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 10 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 11
Certifications
UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 12 UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor 13
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
