VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace

  • VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace
  • VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace
  • VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace
  • VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace
  • VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer FEP+SR
Min. bestelaantal 6100

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Materiaal geleider Koper Diameteropties 2X0,5, 2X0,75, 2X1,00, 2X1,25, 2X1,5, 2X2,00, 2X2,50, 3X0,50, 3X0,75, 3X1,00, 3X1,25, 3X1,50, 3X2,00
Isolatiemateriaal FEP Nominale spanning 600 V
Dirigenttype Gestrand Maximale temperatuur 200c
Draadtype Geïsoleerd Samenstelling dirigent Koperdraad
Jas materiaal PVC/Silicone rubber Type isolatie FEP
Kerntelling Multicore Pakketlengte 100 m per rol
Standaard naleving VDE 0250 Kleuropties Aangepast
Gebruiksomgeving Harde omgevingen
Markeren

100m per Roll FEP Insulated Wire

,

Stranded Conductor Multicore Power Cable

,

Harsh Environments High-temp Wire
Laat een bericht achter
Productomschrijving

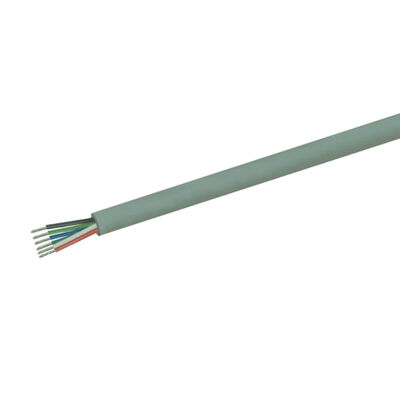

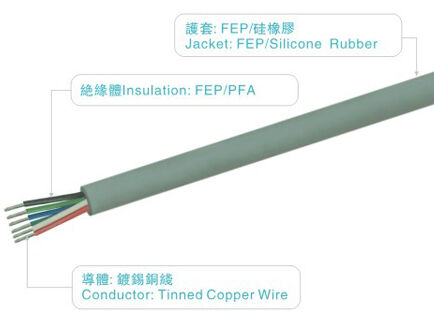

VDE0250 FEP Insulation Wires 600V 200°C 2-4 Multicore High-temp Wire
VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 0 VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 1

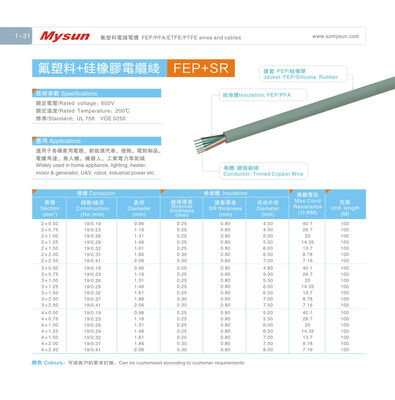

FEP+SR Power Cable Specifications
Rated Voltage 600V
Rated Temperature 200°C
Standard VDE0250
Colors Customized
VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 2 VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 3
Applications
VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 4

Ideal for harsh environments in electronics, aerospace, and industrial applications requiring high temperature resistance and durability.

Company Profile

Shenzhen Mysun Insulation Materials Co., Ltd. specializes in manufacturing high-temperature wires and cables with UL, cUL, CSA, VDE, CCC, RoHS, and REACH certifications. Our products serve home appliances, lighting, medical equipment, office facilities, industrial machinery, and motors & generators.

We maintain ISO9001, ISO14001 international standards and IATF16949 automotive certification.

VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 5 VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 6
Our Certifications
VDE0250 Standard FEP Insulated Wire with 100m per Roll and Stranded Conductor for Harsh Environments in Electronics & Aerospace 7
UL cUL VDE Reach CE ROHS CCC CQC
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us? Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash in USD, EUR, CNY.
