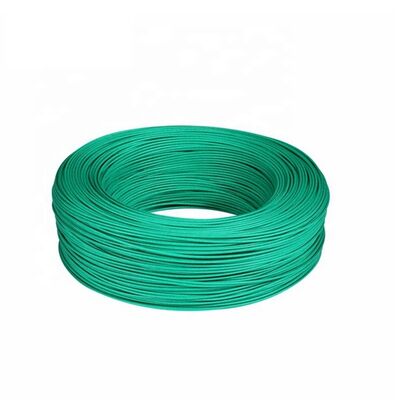

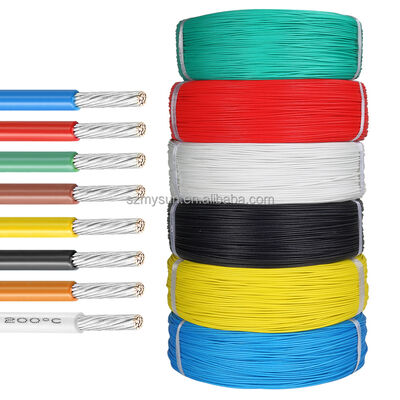

UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
Productdetails
| Materiaal geleider | Vertind koperdraad | Diameter | 12 AWG, 20 AWG, 22 AWG, 14 AWG, 24 AWG, 8 AWG, 16 AWG, 18 AWG, 6 AWG, 2 AWG, 4 AWG, 26 AWG |
|---|---|---|---|
| Isolatie materiaal | Siliconen | Nominale spanning | 300V-600V |
| Dirigenttype | Gestrand | Vorm | Ronde |
| Temperatuur | 200 | Type | Geïsoleerd |
| Geleider | Gemaakte koperkern | Nominale spanning | 300V/600V |
| Materiaal | Koper | Jasje | Siliconen |
| Kleur | Optioneel | Max Resistance | 143 Ω/KM (26 AWG), 89,3 Ω/KM (24 AWG), 56,4 Ω/KM (22 AWG), 35,2 Ω/KM (20 AWG), 22,2 Ω/KM (18 AWG), 1 |
| Eenheid lengte | 305/1000 | ||
| Markeren | UL758 Standard Silicone Wire,200°C Temperature Resistant Silicone Cable,Tinned Copper Conductor High Temperature Wire |
||
Productomschrijving

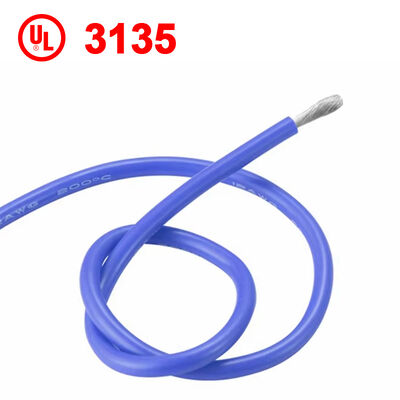

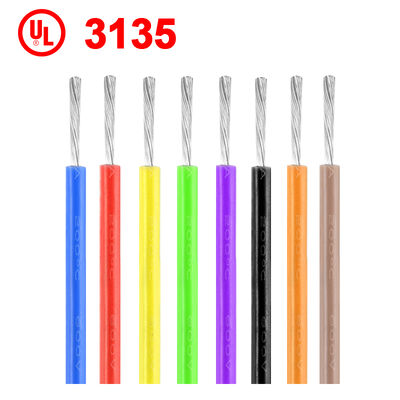

UL 16-26 AWG Silicone Cable - High Temperature Resistant Wire for Home Appliances
Seeking Country Agents for Win-Win Partnership

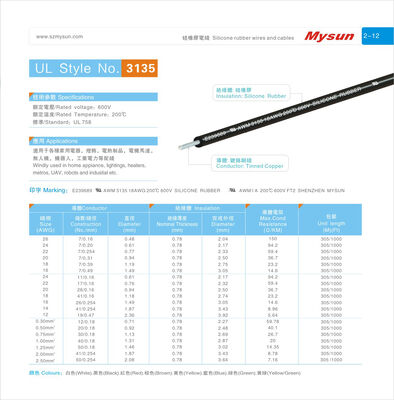

Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | 305/1000 |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | 305/1000 |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | 305/1000 |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | 305/1000 |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | 305/1000 |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 | 305/1000 |
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
