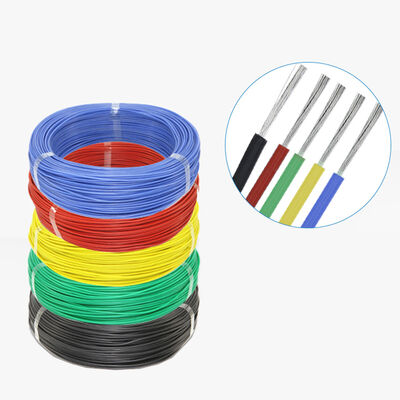

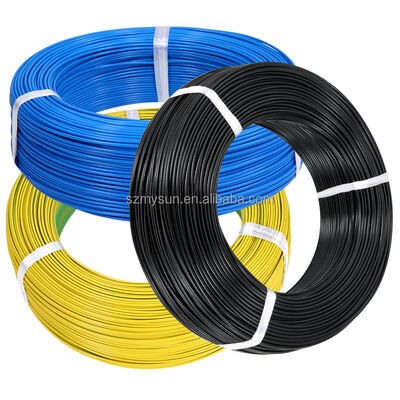

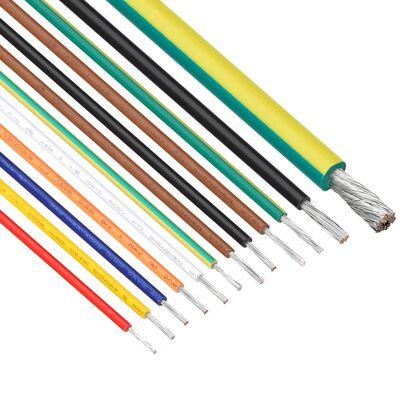

UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire

  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
  • UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Certificering ROHS/CCC/VDE/CCC/ISO9001:2008
Modelnummer UL1015
Min. bestelaantal 305

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Geleidermateriaal Kuiper Diameter 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 18 AWG, 16 AWG, 20 AWG, 22 AWG, 24 AWG
Isolatiemateriaal PVC Nominale spanning 600V
Dirigenttype Gestrand Vorm Ronde
Temperatuur 105C Geleider Koper
Nominale temperatuur 105 Pakketlengte 305 meter/broodje
Max Resistance 347 Ω/KM (30 AWG) Geleidingsdiameter 0,30 mm (30 AWG)
Isolatiedikte 0,80 mm (30 AWG) Isolatie Diameter 1,90 mm (30 AWG)
Eenheid lengte 305 M (30 AWG)
Markeren

2-30 AWG PVC Wire

,

600V Rated Voltage Hook Up Wire

,

105C Temperature Electric Furnace Heating Wire
Laat een bericht achter
Productomschrijving
UL1015 PVC Wire 2-30 AWG Single Core Flexible Hook up Electric Furnace Heating Wire
Product Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
307/0.100.300.801.90347305/1000
287/0.1270.381.98218
267/0.160.482.08138
2411/0.160.612.2185.9
2217/0.160.762.3654.3
2021/0.180.952.5533.9
1834/0.181.212.8121.4
1626/0.2541.503.1013.5
1441/0.2541.893.498.45
1265/0.2542.373.975.31
10105/0.2543.024.623.343
9133/0.2543.394.992.652
8133/0.2803.751.156.052.102
684/0.454.791.537.851.323
4133/0.456.029.080.8315
2212/0.457.6010.660.5231
Product Overview
UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire 0
Applications
UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire 1

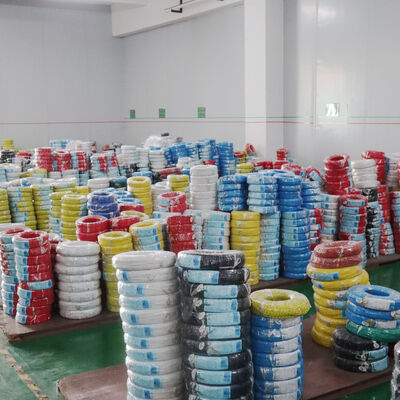

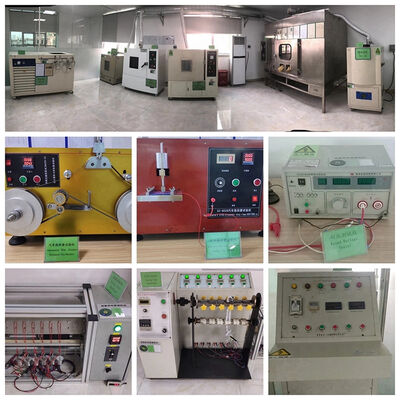

Company Profile
UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire 2 UL1015 PVC Wire 2-30 AWG 600V Rated Voltage 105C Temperature Hook Up Electric Furnace Heating Wire 3
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Markeringen:

geïsoleerde gevlechte koperdraad

gevlechte geïsoleerde draad

looddraad op hoge temperatuur
