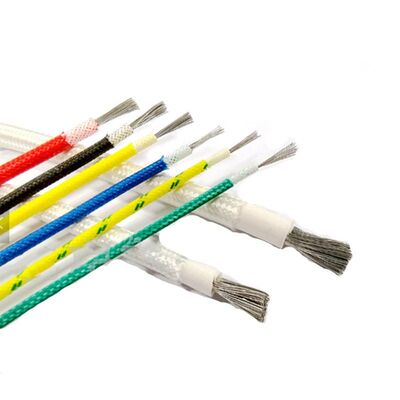

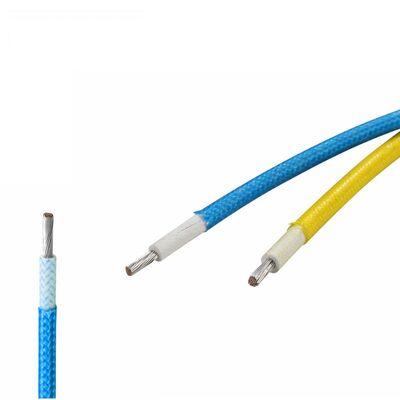

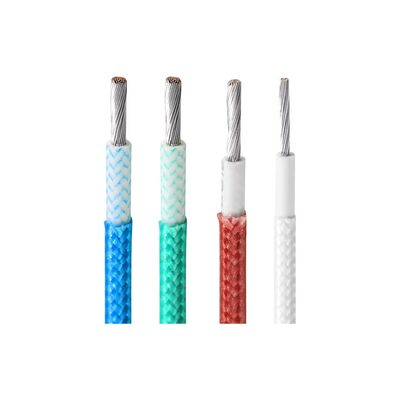

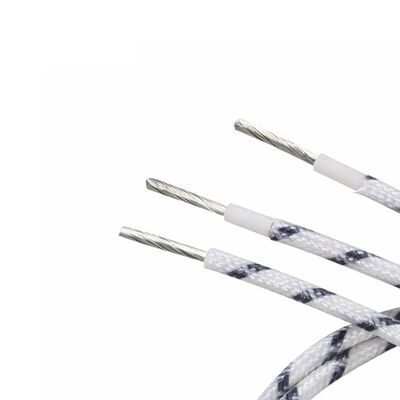

UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll

  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
  • UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Certificering ROHS/CCC/VDE/CCC/UL
Modelnummer UL3069
Min. bestelaantal 3050
Prijs $0.12-0.50

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Materiaal geleider Koper Diameteropties 20AWG, 22AWG, 24AWG, 26AWG
Isolatiemateriaal Rubber Nominale spanning 600V
Dirigenttype Gestrand Maximale temperatuur 150C
Draadtype Geïsoleerd Samenstelling dirigent Koper
Type isolatie siliconenrubber Nominale temperatuur 150 graad
Pakketlengte 305 meter/broodje Max geleiderweerstand 36,7-150 Ω/KM
Nominale dikte 0.93 mm Isolatie Diameter 2,34-2,80 mm
Geleidingsdiameter 0,48-0,94 mm
Markeren

150C Heat Resistance Fiberglass Braided Wire

,

600V Rated Voltage Silicone Fiberglass Braided Wire

,

305m/roll Package UL3069 Wire
Laat een bericht achter
Productomschrijving
UL3069 150C 600V Heat Resistance Wire Silicone Braided Fiberglass Wire Manufacturer
Seeking Country Agents for a Win-Win Partnership
Product Description
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 0 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 1 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 2
Specification
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M)(Ft)
26 7/0.16 0.48 0.93 2.34 150 305/1000
24 7/0.20 0.61 0.93 2.47 94.2 305/1000
22 7/0.254 0.77 0.93 2.63 59.4 305/1000
20 7/0.31 0.94 0.93 2.80 36.7 305/1000
Click here to contact us for a competitive quote
Company Profile
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 3 UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 4
Our Products
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 5
Application
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 6
Our Overseas Clients
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 7
Exhibition
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 8
Certifications
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll 9
FAQ
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
