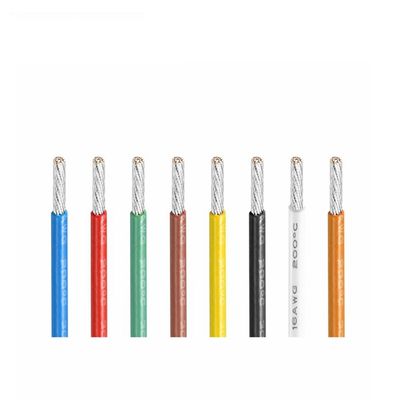

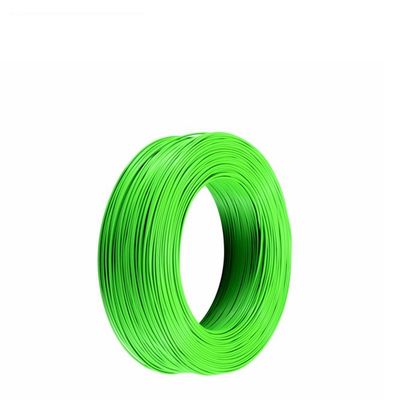

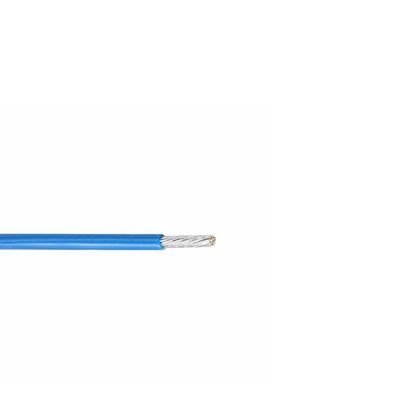

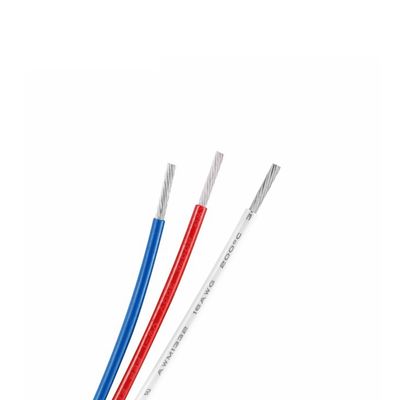

UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications

  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
  • UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer UL8207
Min. bestelaantal 3050

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Materiaal geleider Koper Diameter 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG
Isolatiemateriaal Rubber Nominale spanning 300 V
Dirigenttype Stevig Vorm Ronde
Temperatuurbeoordeling 180℃ Type Geïsoleerd
Kleur Alle kleuren Eenheid lengte 305/1000
Spanning 300V Isolatie FEP
Geleider Vertind koper/verzilverd koper Max geleiderweerstand 150 Ω/KM (26AWG), 94,2 Ω/KM (24AWG), 59,4 Ω/KM (22AWG), 36,7 Ω/KM (20AWG), 23,2 Ω/KM (18AWG), 20 Ω/K
Nominale dikte 0,305 mm (26AWG-17AWG), 0,350 mm (16AWG-14AWG), 0,450 mm (11AWG)
Markeren

300V FEP Wire

,

180C UL8207 Wire

,

Sensor Application Sensing Wire
Laat een bericht achter
Productomschrijving
UL8207 FEP Wire - High Temperature Heat Resistant Wire for Sensors
Supplies Fortune 500 Companies - Top FEP Wire Supplier In China
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 0 UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 1
Product Specifications
UL8207 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
26 7/0.16 0.305 150 610/2000
24 7/0.20 0.305 94.2 610/2000
22 19/0.15 0.305 59.4 305/1000
20 19/0.19 0.305 36.7 305/1000
18 19/0.23 0.305 23.2 305/1000
17 19/0.26 0.305 20 305/1000
16 19/0.30 0.350 14.6 305/1000
15 19/0.32 0.350 13.7 305/1000
14 19/0.37 0.350 8.96 305/1000
13 19/0.41 0.350 7.16 305/1000
12 19/0.47 0.350 5.64 305/1000
11 19/0.52 0.450 4.70 305/1000
10 19/0.43 0.350 3.55 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 2 UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 3
Our Products
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 4
Applications
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 5
Our Overseas Clients
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 6
Exhibitions
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 7
Certifications
UL8207 FEP Wire 300V 180C High Temperature Heat Resistant Sensing Wire for Sensor Applications 8
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
  • What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
