UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment

  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer UL20723
Min. bestelaantal 3050

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Materiaal geleider Koper Diameteropties 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Isolatiemateriaal FEP Nominale spanning 600V
Dirigenttype Stevig Vorm Ronde
Temperatuurbeoordeling 200℃ Type Geïsoleerd
Kernvereisten 2 kernen of meer 16-4/0 AWG FEP-draad Vlechtconstructie 16X6X012, 16X7X012, 24X6X0,12, 24X8X0,12, 24X10X0,12
Vlechtdikte 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Dikte van de buitenkleding 0,35 mm
Nominale dikte 0.50mm AWG -maat 22, 20, 18
Geleidersconstructie 19/0,15 mm, 19/0,19 mm, 19/0,235 mm
Markeren

UL20723 FEP Wire

,

Multi Core FEP Wire

,

FEP Insulation Wire
Laat een bericht achter
Productomschrijving

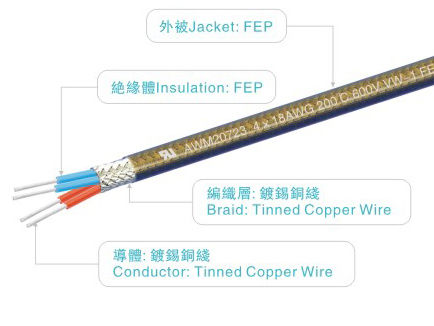

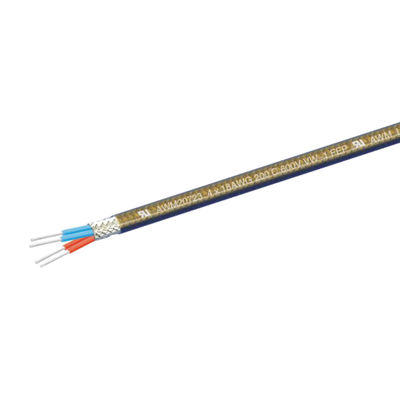

UL20723 FEP Multi Core Wire 600V 200°C Tinned Copper Braid 2X18 - 7X22 High Temperature FEP Wire for UAV Robot
Supplies Fortune 500 Companies | Top PFA Wire Supplier In China
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 0 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 1

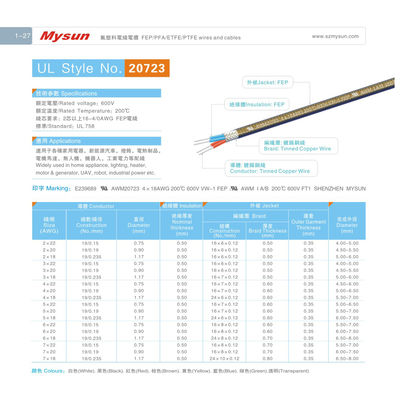

Specification
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter (mm)
2X2219/0.150.750.5016X6X0120.354.50-5.50
2X2019/0.190.900.5016X6X0120.355.00-6.00
2X1819/0.2351.170.5016X6X0120.355.30-6.30
3X2219/0.150.750.5016X6X0120.354.50-5.50
3X2019/0.190.900.5016X6X0120.355.00-6.00
3X1819/0.2351.170.5016X6X0120.355.30-6.30
4X2219/0.150.750.5016X7X0120.354.50-6.00
4X2019/0.190.900.5016X7X0120.355.00-6.50
4X1819/0.2351.170.5024X6X0.120.355.30-7.00
5X2219/0.150.750.5016X7X0120.355.00-6.50
5X2019/0.190.900.5016X7X0120.355.50-7.00
5X1819/0.2351.170.5024X6X0.120.356.00-7.50
6X2219/0.150.750.5016X8X0120.355.5-7.00
6X2019/0.190.900.5016X8X0120.356.00-7.50
6X1819/0.2351.170.5024X8X0.120.356.50-8.00
7X2219/0.150.750.5016X8X0120.356.00-7.50
7X2019/0.190.900.5016X8X0120.356.50-8.00
7X1819/0.2351.170.5024X10X0.120.357.00-8.50
Company Profile
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 2 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 3
Our Products
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 4
Application
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 5
Our Overseas Clients
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 6
Exhibition
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 7
Certifications
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 8
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
2. What Can We Provide?
We provide high-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why Choose Us?
  • Free samples available
  • Competitive pricing
  • High quality standards
  • Customized services
4. What Certifications Do We Have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
