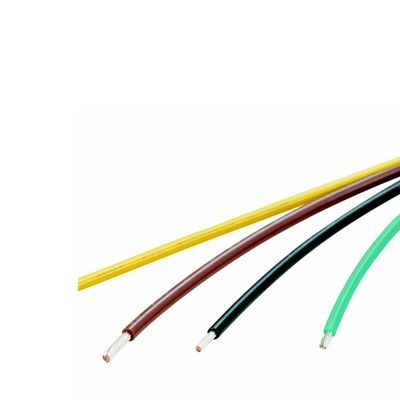

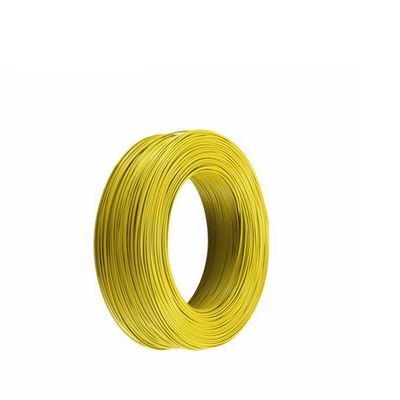

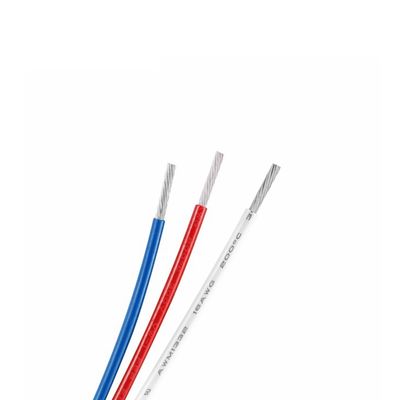

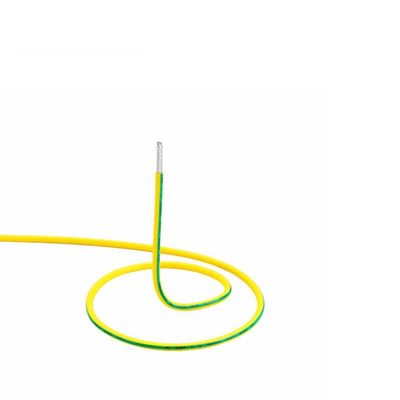

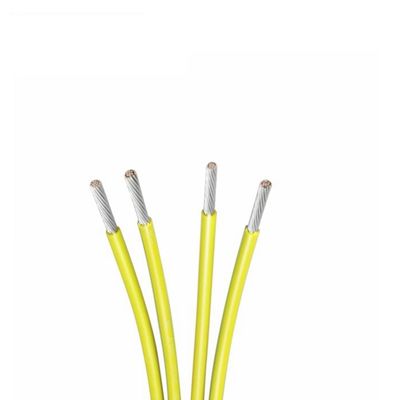

UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications

  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
  • UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Modelnummer UL1859
Min. bestelaantal 3050

Contacteer me voor vrije steekproeven en coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Geleidingsmateriaal Vertind koper/verzilverd koper Isolatiemateriaal PFA
Nominale spanning 600 V Type geleider stevig
Vorm Ronde Maximale temperatuur 150 ° C
AWG -maten 4/0AWG tot 32AWG Eenheid lengte 305/1000 m/ft
Max geleiderweerstand 563 Ω/KM (32AWG) tot 0,168 Ω/KM (4/0AWG) Isolatiedikte 0,350 mm tot 1,200 mm
Nominale diameter 0,94 mm (32AWG) tot 15,66 mm (4/0AWG) Geleidersconstructie 7/0,08 mm (32AWG) tot 7/4,42 mm (4/0AWG)
Standaard UL1859 Spanningsbeoordeling 600V
Draadtype Geïsoleerd
Markeren

UL1859 PFA Wire

,

600V Sensor Wire

,

150°C High Temperature Wire
Laat een bericht achter
Productomschrijving
UL1859 PFA Wire AWG 600V 150°C Silver Plated Copper High Temperature Wire for Sensor
Premium PFA Wire Supplier for Fortune 500 Companies
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 0 UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 1
Technical Specifications
UL1859 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
32 7/0.08 0.24 0.350 0.94
Contact us for the Best Quote
Company Profile
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 2 UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 3
Our Products
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 4
Applications
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 5
Our Overseas Clients
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 6
Exhibitions
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 7
Certifications
UL1859 PFA Wire 600V 150°C High Temperature Sensor Wire for Industrial and Medical Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
