6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications

  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
  • 6 Core 7 Core 8 Core Silicone Insulated Multicore Wire with UL Standard and Copper Conductor for Heating Applications
Plaats van herkomst Guangdong, China
Merknaam Mysun
Modelnummer UL4330
Min. bestelaantal 1
Productdetails
Geleidingsmateriaal Koper Isolatiemateriaal Rubber, Siliconerubber
Nominale spanning 300 V Type geleider Gestrand
Temperatuurbeoordeling 150C Geleidingsgrootte 14AWG, 16AWG, 18AWG
Kerntelling 6, 7, 8 Geleidingsdiameter 1,17 mm, 1,47 mm, 1,89 mm
Isolatiedikte 0,45 mm, 0,55 mm Max Resistance 5.50-10,00 Ω/km
Eenheid lengte 305/610 meter Bouw 7/0.39, 7/0.49, 41/0.254
Nominale dikte 0,45 mm, 0,55 mm Isolatie Diameter ≥0,40 mm
Verpakkingslengte 305/610 meter
Markeren

6 Core Silicone Insulated Wire

,

7 Core Multicore Wire

,

8 Core Silicone Rubber Wire
Laat een bericht achter
Productomschrijving
6 Core 7 Core 8 Core 14AWG 16AWG 18AWG UL Standard Silicone Insulated Multicore Wire
Premium Silicone Rubber Wire Supplier
Supplies Fortune 500 companies. Top Silicone Rubber Wire Supplier in China.

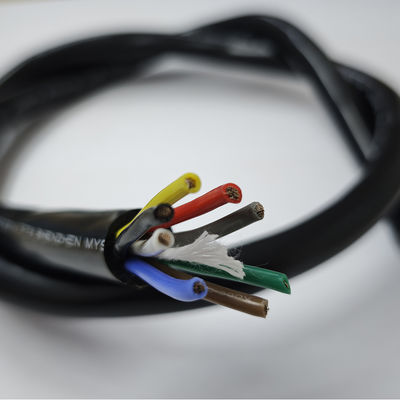

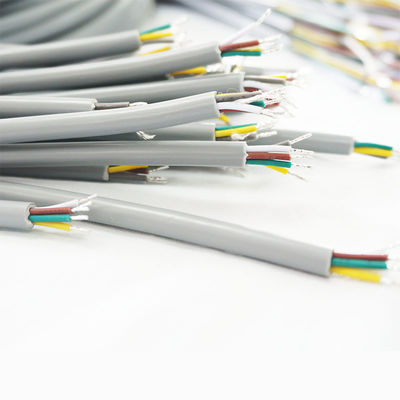

Silicone insulated multicore wire product photo Close-up of silicone insulated multicore wire
UL4330 Specifications
Conductor Construction (No./mm) Diameter (mm) Insulation Nominal Thickness (mm) Diameter (mm) Max. Cond. Resistance (Ω/KM) Unit Length (M)/(Ft)
2×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
2×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
2×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
3×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 5.50-7.00
3×16 7/0.34 1.47 ≥0.40 0.45 ≥0.40 6.00-7.50
3×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.00-9.50
4×18 7/0.39 1.17 ≥0.40 0.45 ≥0.40 6.00-7.50
4×16 7/0.49 1.47 ≥0.40 0.45 ≥0.40 6.50-8.00
4×14 41/0.254 1.89 ≥0.40 0.55 ≥0.40 8.50-10.00
Multi-core silicone cables can be customized upon request
Product Gallery

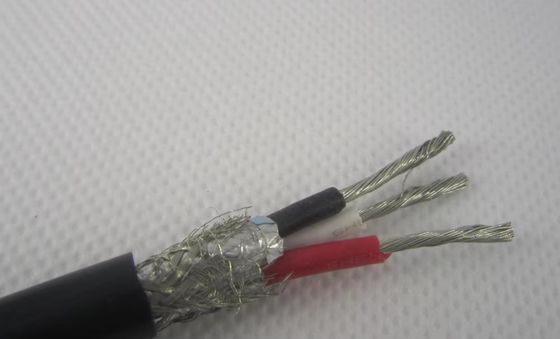

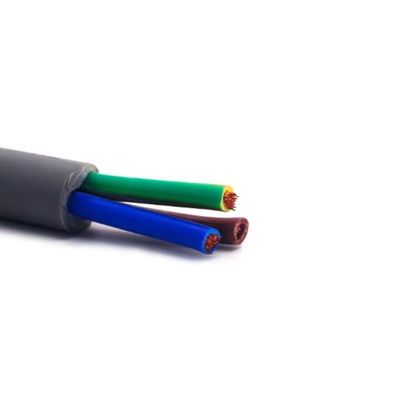

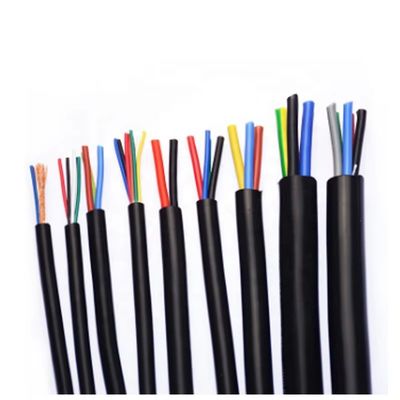

Silicone wire production process Silicone wire quality inspection Silicone wire packaging Silicone wire applications Silicone wire specifications Silicone wire close-up
Company Profile

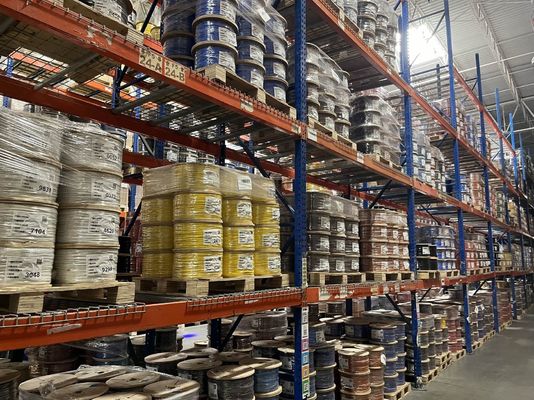

Our manufacturing facility Our production capabilities
Our Overseas Clients
Our international client network
Exhibition
Our trade show participation
Certifications
Our quality certifications
Frequently Asked Questions
  • Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
  • What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
  • Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
  • What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
  • What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
