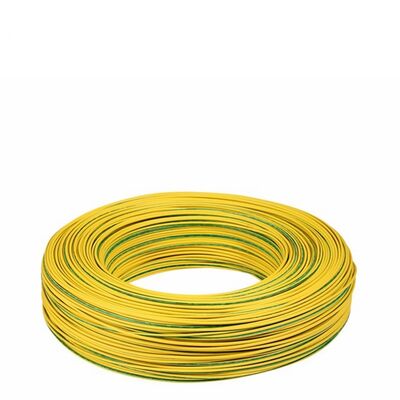

UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage

  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
  • UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
Plaats van herkomst Guangdong, China
Merknaam MYSUN
Certificering UL/ROHS/CCC/VDE/CCC/ISO9001:2008
Modelnummer UL3266
Min. bestelaantal 6100
Prijs €0.1755-0.2633
Productdetails
Materiaal geleider Vertind koper Diameteropties 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 0,50 mm2, 0,75 mm2, 1 mm2, 1,5 mm2
Isolatie materiaal XLPE Nominale spanning 300 V
Dirigenttype Stevig Vorm Ronde
Maximale temperatuur 125C Maatbereik 32~10AWG
Kleuren beschikbaar Rood, blauw, wit, geel, groen, bruin, zwart, grijs Geleidersconstructie 30/0,18
Nominale dikte 0,39 mm Max geleiderweerstand 3,55 Ω/KM (10AWG)
Eenheid lengte 305m/1000ft Isolatiedikte 0,39 mm
Algehele diameter 4,05 mm (10AWG)
Markeren

Tinned Copper XLPE Wire

,

125C Rated Temperature Hook Up Wire

,

300V Rated Voltage UL3266 Wire
Laat een bericht achter
Productomschrijving
UL3266 Yellow Green 0.75mm² 30/0.18 300V 125°C Tinned Copper XLPE Wire
Premium UL3266 certified wire designed for Battery Energy Storage Systems (BESS) and electrical applications requiring high temperature resistance and reliable performance.
Product Overview
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 0 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 1
Technical Specifications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 2
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
327/0.080.240.391.02563610/2000
307/0.100.300.391.08381610/2000
287/0.1270.380.391.16239610/2000
267/0.160.480.391.26150610/2000
2411/0.160.600.391.3894.2610/2000
2217/0.160.760.391.5459.4305/1000
2021/0.180.940.391.7236.7305/1000
1816/0.2541.180.391.9623.2305/1000
1626/0.2541.500.392.2814.6305/1000
1441/0.2541.890.392.778.96305/1000
1265/0.2542.370.393.155.64305/1000
10105/0.2543.020.394.053.55305/1000
Customized size according to your needs
Contact Us for Best Quotation
Our Product Range
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 3 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 4
Applications
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 5 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 6
Company Profile
UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 7 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 8 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 9 UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage 10
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
